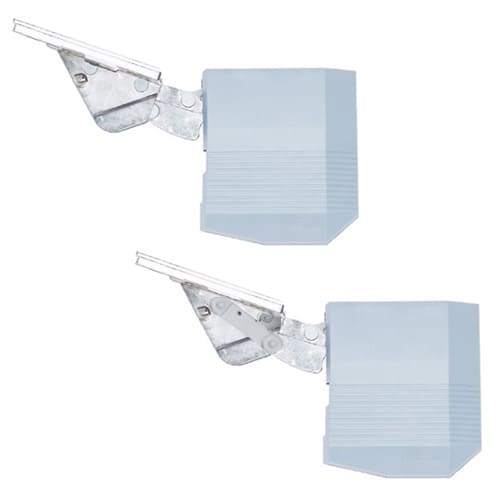

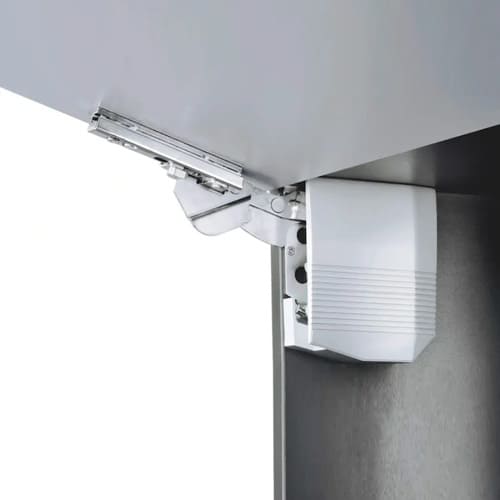

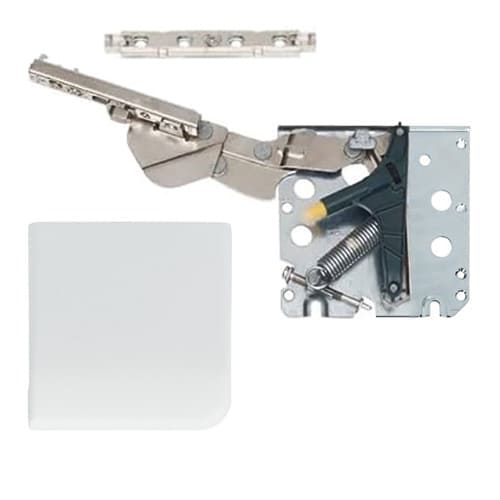

Grass KINVARO T76 Lift Up Flap Fittings Quick Mount for Timber [PAIR]

  • Product code: KT76
With adjustable damped closing action that permits quiet, gentle closing and with a wide application spectrum due to the spring power-assisted opening function the T76 lift up flap fittings offer the persfect solution.

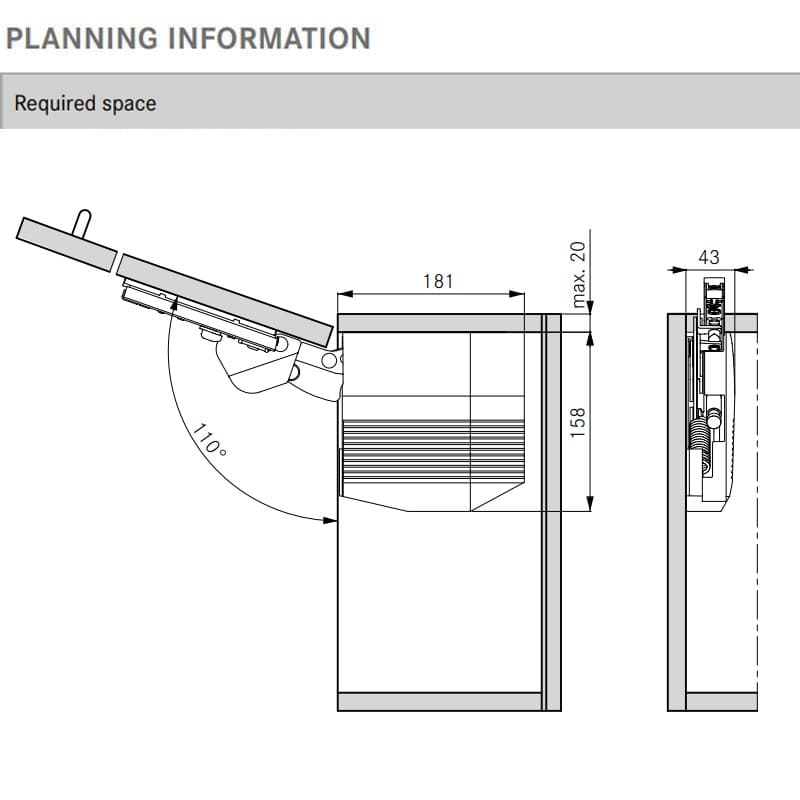

  • Variable opening angle holds flaps from 45°-110°
  • Maximum cabinet width 1200mm
  • Can be used for wooden flaps

Availability:

  • Osborne Park: In stock
  • Adelaide: In stock
  • Wangara: Special order
  • Bunbury: In stock
$147.35 kit (incl.GST)
Trade customers: login to view pricing
Information Brochures & Downloads

Product Information

Unsure on what information you need to know? Check out our comprehensive information guide available from the Brochures & Downloads section on this page. Additional technical data is also available as well.

Additional Features
Using the pre-installed springs
  • Flap height 400mm - Flap weight 7kg to 11kg
  • Flap height 450mm - Flap weight 6.7kg to 9.6kg
  • Flap height 500mm - Flap weight 5.8kg to 8.5kg
  • Flap height 550mm - Flap weight 5.6kg to 7.6kg
  • Flap height 600mm - Flap weight 5.2kg to 7.0kg

    • Brochures & Downloads

    Grass Kinvaro T76 Technical Data Sheet

    Grass Kinvaro T76 Technical Data Sheet
