Grass Kinvaro T65 Lift Up Flap Stay Dimensions

Grass Kinvaro T65 Lift Up Flap Stay for Timber

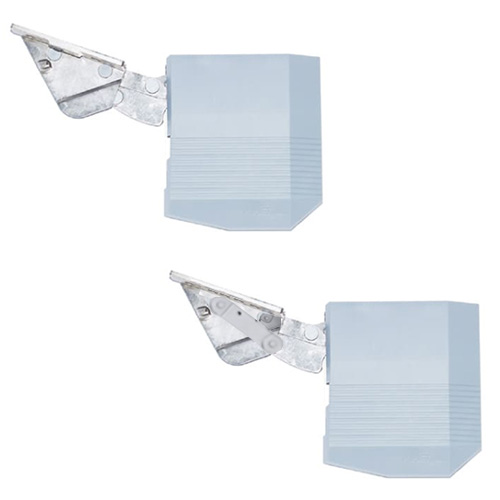

Grass KINVARO T65 Lift Up Flap Fittings for Timber [PAIR]

Product code: KT65WOOD

With adjustable damped closing action that permits quiet, gentle closing and with a wide application spectrum due to the spring power-assisted opening function the T71 lift up flap fittings offer the persfect solution.

Variable opening angle holds flaps from 45°-100°
Maximum cabinet width 1200mm
Can be used for wooden flaps

Availability:

Osborne Park: In stock
Adelaide: In stock
Wangara: Special order
Bunbury: In stock

$80.80 kit (incl.GST)

Trade customers: login to view pricing

Quantity

Information Brochures & Downloads

Product Information

Unsure on what information you need to know? Check out our comprehensive information guide available from the Brochures & Downloads section on this page. Additional technical data is also available as well.

Additional Features

Using the pre-installed springs

Flap height 250mm - Flap weight 2.4kg to 7.4kg

Flap height 300mm - Flap weight 2.0kg to 6.3kg

Flap height 350mm - Flap weight 1.7kg to 5.4kg

Flap height 400mm - Flap weight 1.5kg to 4.7kg

Flap height 450mm - Flap weight 1.3kg to 4.2kg

Flap height 500mm - Flap weight 1.3kg to 3.9kg

Flap height 550mm - Flap weight 1.3kg to 3.4kg

Flap height 600mm - Flap weight 1.3kg to 3.1kg

Using the optional supplied springs

Flap height 250mm - Flap weight 1.8kg to 4.2kg

Flap height 300mm - Flap weight 1.4kg to 3.4kg

Flap height 350mm - Flap weight 1.0kg to 2.9kg

Flap height 400mm - Flap weight 0.8kg to 2.5kg

Flap height 450mm - Flap weight 0.7kg to 2.2kg

Flap height 500mm - Flap weight 0.6kg to 2.0kg

Grass Kinvaro T65 Technical Data Sheet
