Grass KINVARO F20 Bifold Flap Fittings for 520-559mm Cabinet - [Type 2 Spring B]

  • Product code: KF202B

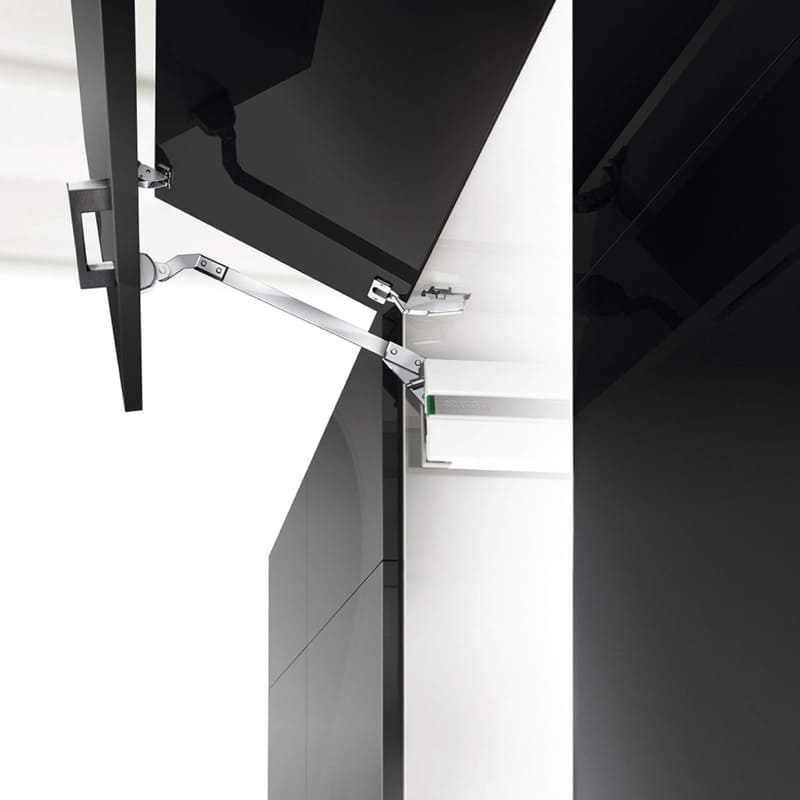

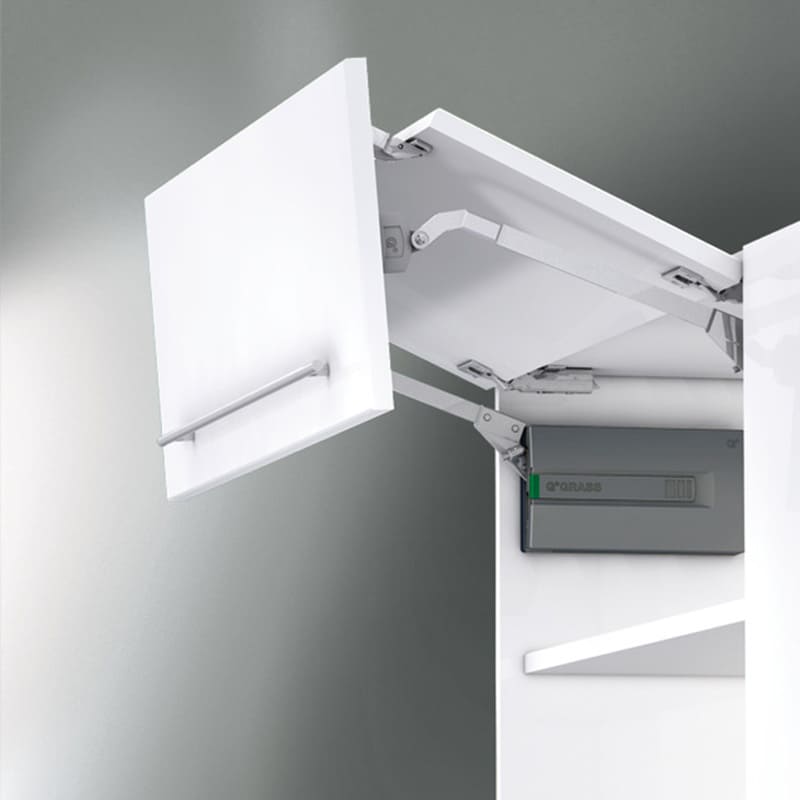

With a wide range of applications even deep front panels ergonomically fold open and save space. And on closing, the silent system gently moves them down in peaceful silence.
  • Suitable for cabinet height between: 520-559mm
  • Minimum cabinet width 400mm
  • Maximum cabinet width 1200mm

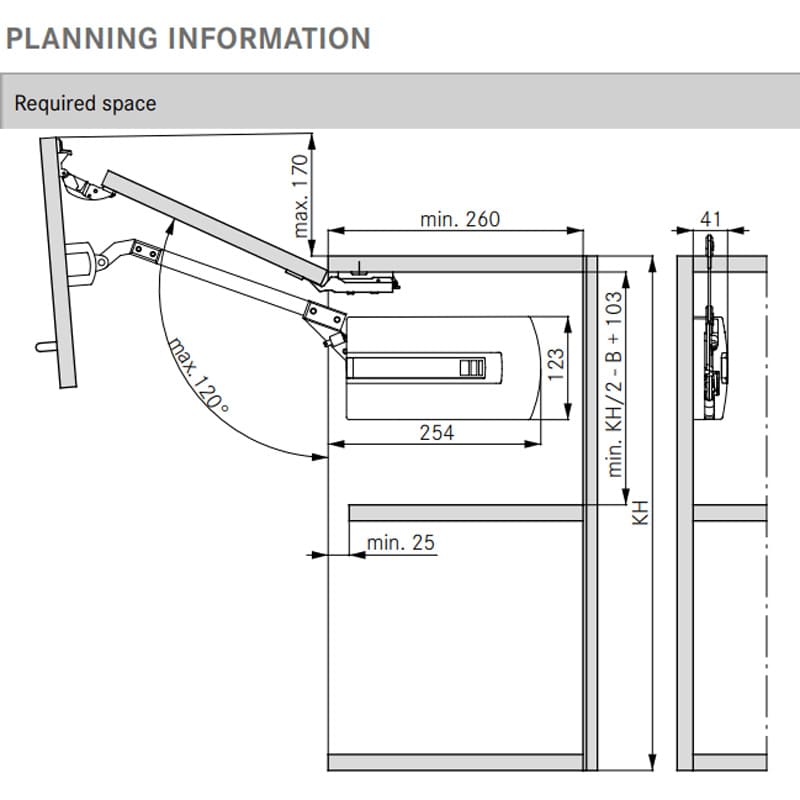

  • Minimum installation depth: 260mm

Availability:

  • Osborne Park: In stock
  • Adelaide: Special order
  • Wangara: Special order
  • Bunbury: Special order
$195.85 kit (incl.GST)
Trade customers: login to view pricing
Information Brochures & Downloads

Product Information

Unsure on what information you need to know? Check out our comprehensive information guide available from the Brochures & Downloads section on this page. Additional technical data is also available as well.

Additional Features
  • Height adjustment: +/- 1.5 mm
  • Lateral adjustment: +/- 2 mm
  • Depth adjustment: +/- 0.5 mm
  • Material: Steel
  • Surface: Nickel plated
  • Colour: Telegrey
  • Manufacturer's part number: F152145237

    • Brochures & Downloads

    Grass Kinvaro F20 Technical Data Sheet

    Grass Kinvaro F20 Technical Data Sheet
