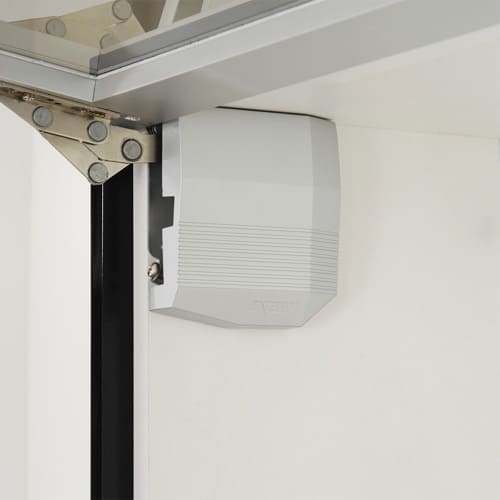

Grass KINVARO T65-D Lift Up Flap Fittings for Aluminium Frame [PAIR]

  • Product code: KT65ALUM
With a wide range of applications even deep front panels ergonomically fold open and save space. And on closing, the silent system gently moves them down in peaceful silence.
  • Variable opening angle holds flaps from 45°-100°
  • Maximum cabinet width 1200mm
  • Can be used for aluminium frame flaps

Availability:

  • Osborne Park: In stock
  • Adelaide: Special order
  • Wangara: Special order
  • Bunbury: Special order
$65.30 kit (incl.GST)
Trade customers: login to view pricing
Information Brochures & Downloads

Product Information

Unsure on what information you need to know? Check out our comprehensive information guide available from the Brochures & Downloads section on this page. Additional technical data is also available as well.

Additional Features
Using the pre-installed springs
  • Flap height 250mm - Flap weight 2.4kg to 7.4kg
  • Flap height 300mm - Flap weight 2.0kg to 6.3kg
  • Flap height 350mm - Flap weight 1.7kg to 5.4kg
  • Flap height 400mm - Flap weight 1.5kg to 4.7kg
  • Flap height 450mm - Flap weight 1.3kg to 4.2kg
  • Flap height 500mm - Flap weight 1.3kg to 3.9kg
  • Flap height 550mm - Flap weight 1.3kg to 3.4kg
  • Flap height 600mm - Flap weight 1.3kg to 3.1kg
    • Using the optional supplied springs
  • Flap height 250mm - Flap weight 1.8kg to 4.2kg
  • Flap height 300mm - Flap weight 1.4kg to 3.4kg
  • Flap height 350mm - Flap weight 1.0kg to 2.9kg
  • Flap height 400mm - Flap weight 0.8kg to 2.5kg
  • Flap height 450mm - Flap weight 0.7kg to 2.2kg
  • Flap height 500mm - Flap weight 0.6kg to 2.0kg

    • Brochures & Downloads

    Grass Kinvaro T65 Technical Data Sheet

    Grass Kinvaro T65 Technical Data Sheet
