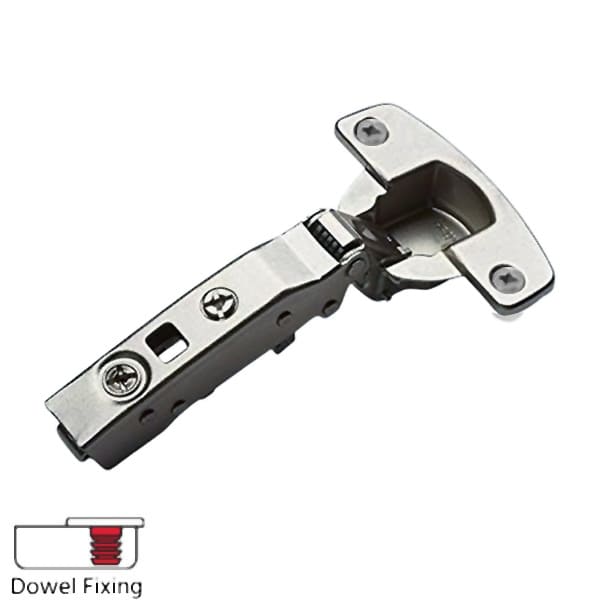

Hettich SENSYS Thick Door Hinge 95deg Soft Close Knock-In
The Sensys thick door hinge by Hettich provides an excellent solution for doors up to 32mm thick. Backed with reliable performance, long life & noticeable high quality construction.
- Suits Doors Up to 32mm Thick
- Used With Pocket Door Fittings
- Intergrated Soft Closing
- 95° Opening Angle

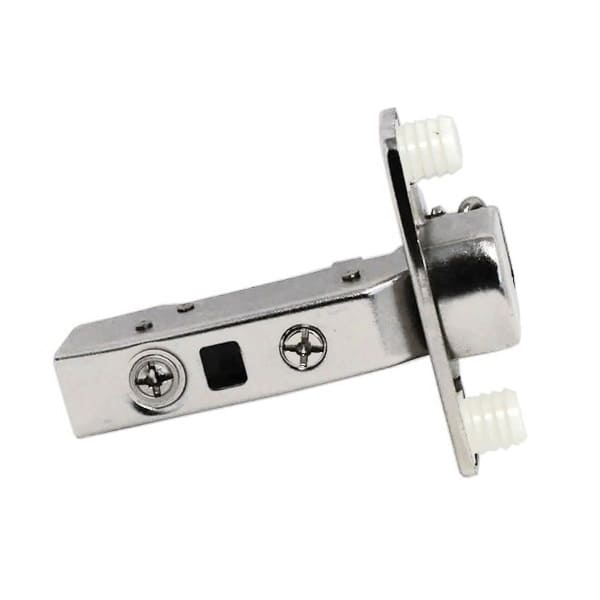

- Knock-In Installation
Additional Features:

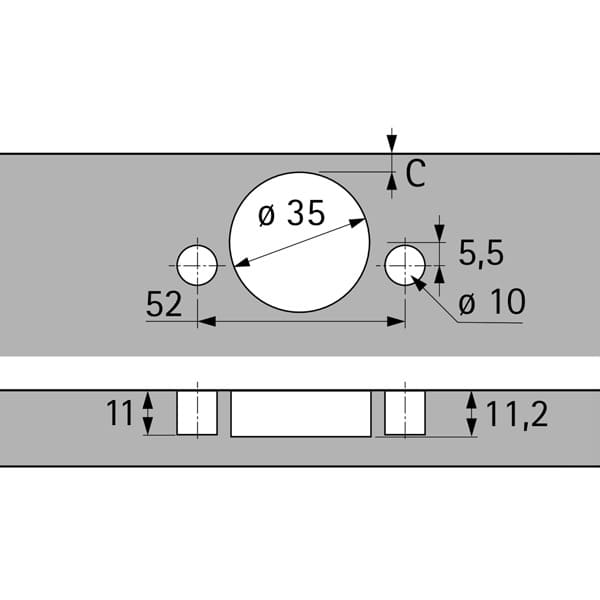

- Drilling pattern: 52mm x 5.5mm
- Min. door thickness: 15 mm
- Max. door thickness: 32 mm
- Cup diameter: 35 mm
- Cup depth: 12.8 mm
- Hinge surface finish: steel nickel plated
- Diameter of mounting hole: 10mm ∅
- Integrated overlay adjustment: mm / -2 mm
- Integrated depth adjustment: mm / -2 mm
- Mounting hole: ∅ 10 x 11
Availability:
- Osborne Park: Back order
- Adelaide: Special order
- Wangara: Special order
- Bunbury: Special order
