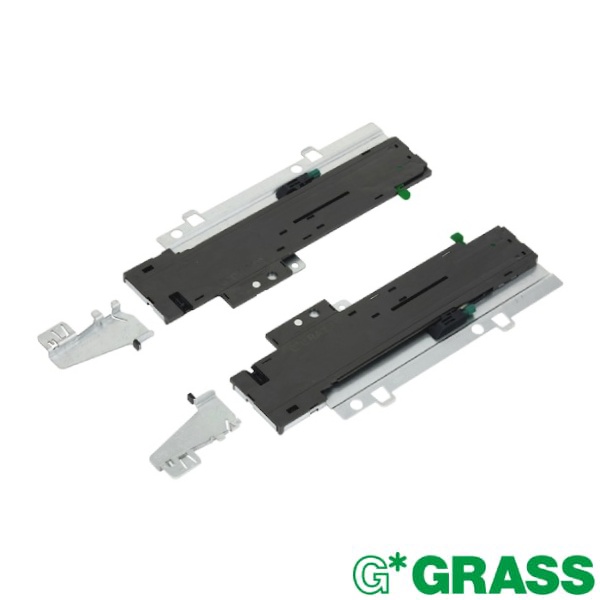

Grass Nova Pro SCALA Tipmatic Push-to-Open Mechanism [For 40kg & 70kg Runners]
With the Tipmatic push-to-open mechanism, handle-free opening and soft closing are seamlessly combined. A gentle tap opens the drawer, while a liquid damper ensures smooth, low-impact closing.
- Can be Retrofit to Existing Scala Drawers
- Easy Installation and Adjustment
- 3-Stage Adjustment for Ejection Force
- Suitable for Scala 40kg & 70kg Runners
- Suitable for Scala 400mm - 650mm Runners
- Part Numbers: 122547, 122548, P600P.233, P600P.234
Availability:
- Osborne Park: Limited stock
- Adelaide: In stock
- Bunbury: In stock
Product Information

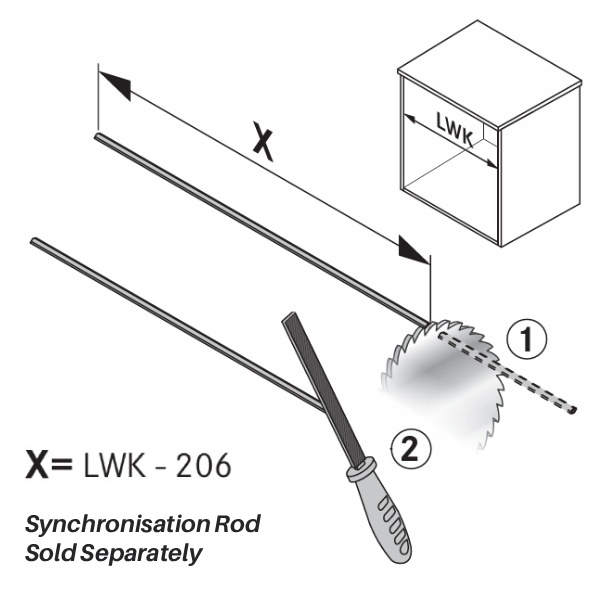

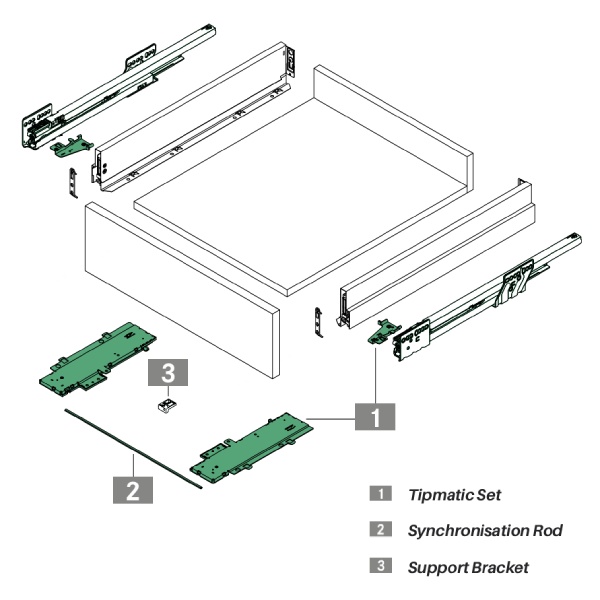

Synchronisation Rod
Important: A synchronisation rod must be used with all Tipmatic sets to ensure the left and right push to open mechanisms do not desynchronise from one another.
Support Bracket
For drawers 800mm wide or greater, or 600mm high or greater, the use of a support bracket is recommended. This prevents the synchronisation rod from sagging and helps secure the cabinet base to the drawer front, reducing the risk of the front pulling away in the centre.
