Bifold Track Hanger Single Hinge - LEFT HAND

Product code: TBFHANGERLH

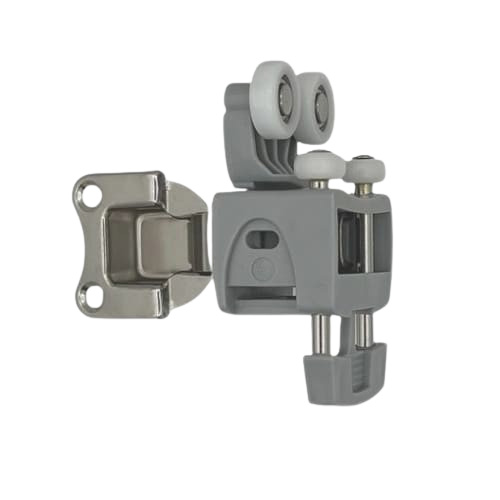

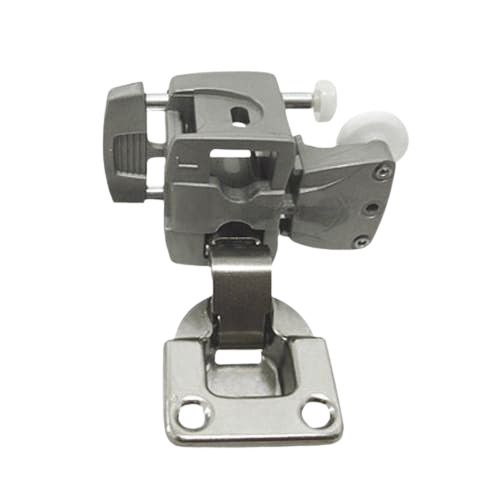

Also known as a door carriage or track hanger assembly, the unit mounts onto a length of track to create a smooth operating bifolding track system.

Maximum Door Panel Height: 1800mm
Maximum Door Panel Width: 500mm
Maximum Door Panel Weight: 10kg
Doors Open to the Left
Left/Right Reversible Orientation

Availability:

Osborne Park: In stock
Adelaide: In stock
Bunbury: Limited stock

$27.35 each (incl.GST)

Trade customers: login to view pricing

Quantity

Information Brochures & Downloads

Product Information

Reversible Orientation

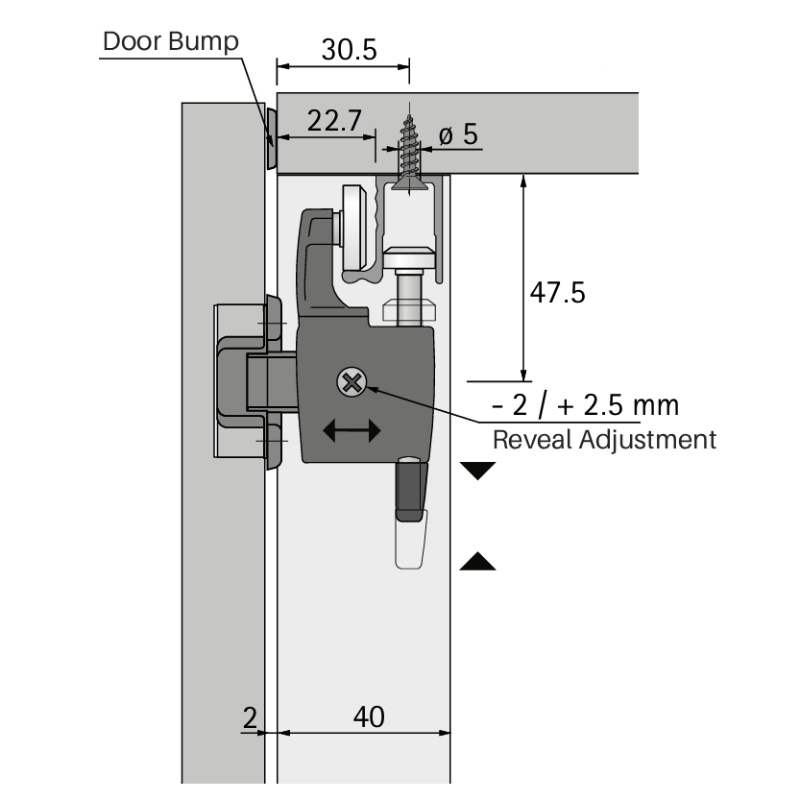

The hanger can be configured for either left or right-hand orientation, giving you greater flexibility during installation. To change the orientation, fully unscrew the reveal adjustment screw and slide the hinge cup out of the hanger. Reposition the hinge cup on the opposite side, then secure it in place with the adjustment screw.

Door Height

The recommended maximum door height for this system is 1800mm. For doors taller than 1800mm, we recommend using the double-cup hanger for increased stability and support. See our related products below for the double-cup version.
