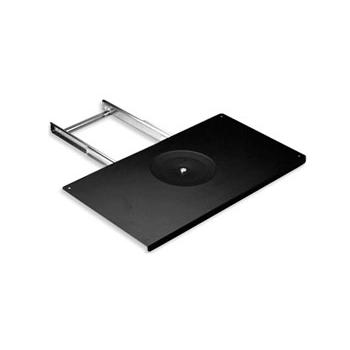

TV SWIVEL LARGE PULL OUT BLACK 720 X 390
Television Swivel - Large - Full Extension
Perfect for accessing your television in or on your entertainment center Pull out television shelves let give you easier access to the back of your television They also allow you to pullout your television and angle it for best viewing This pull out TV swivel shelf features 360 degree rotation with smooth action glides Heavy duty 60kg capacity 340mm extension ball bearing slides with end stops provide a smooth ride for your TV
The 390mm x 720mm rectangular top plate has holes for attaching your shelf A custom top shelf to match your installation can be made and attached to this slide out swivel television shelf Designed for up to a 36 CRT television This unit, as all of the television slideouts, is rated based on a balanced load placed in the center of the swivel If you have a LCD or Plasma set you can use this system but make sure to center the weight of the set on the center of the swivel For smaller sets, consider using the small TV Swivel instead of this unit ( See item code TVSS)
Detailed specifications: Available in brown only Capacity: 60kg Swivel plate depth 390mm Swivel plate width 720mm Turning circle of 840mm required Base to swivel plate top 50mm Mounting holes: 6mm width and elongated Hole Spacing: 297mm front to back and 204mm side to side Overall runner assembly width 290mm Overall runner assembly depth 365mm Extension 340mm Designed for Maximium 36 CRT style television
Detailed specifications:
All pull out television shelves must be secured to any structure that has a slide out TV shelf installed. It is recommended to use bolts nuts and washers to ensure that the unit is securely fastened to carry the weight. The cabinet or wall unit may also require anchoring to the wall or floor to ensure that the structure will not tip when the TV shelf is extended with the television in place
Availability:
- Osborne Park: Special order
- Adelaide: In stock
- Wangara: Special order
- Bunbury: Special order
