Galvin Prime Lighting Double IR Door Sensor - Channel Wired

  • Product code: PRMLTSENDDC
This double door sensor enhances the versatility of the Galvin Prime Lighting range, allowing the switching of lights on and off when a cupboard door is opened and closed.

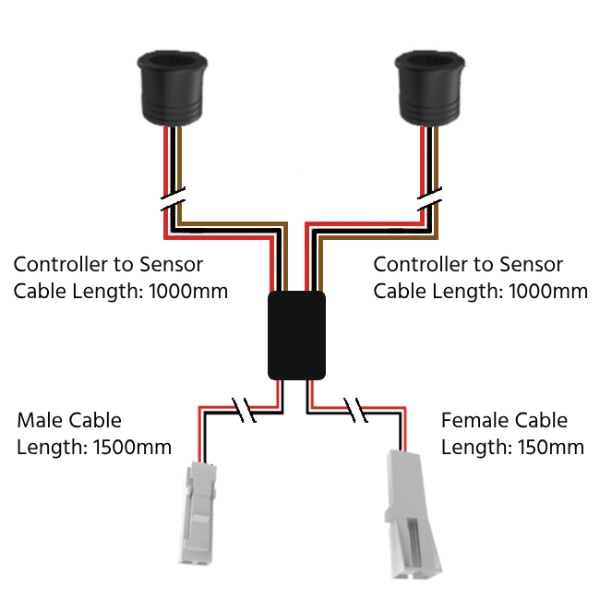

  • Recess or Surface Mounted
  • 2 Sensors for Double Door Cabinets
  • Channel Wired - Controls Individual Lights
  • Plug & Play - Easy Set-up
  • Male Cable Length: 1500mm
  • Female Cable Length: 150mm
  • Cut-out: ∅8mm x 12mm

Availability:

  • Osborne Park: In stock
  • Adelaide: Limited stock
  • Bunbury: Special order
$27.70 each (incl.GST)
Trade customers: login to view pricing
Information Brochures & Downloads

Product Information

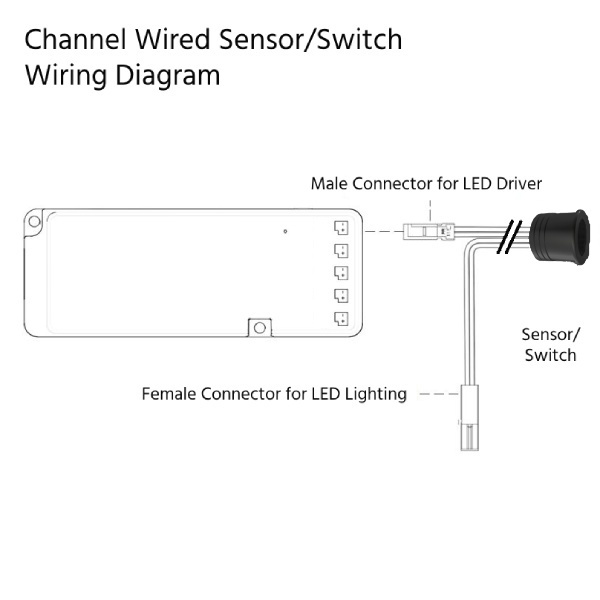

Channel Wired: This sensor plugs in between the driver output and the lighting. Inputs into this sensor will only control the lighting attached to the sensor, resulting in the ability to management of all lights connected to the driver independently from each other.

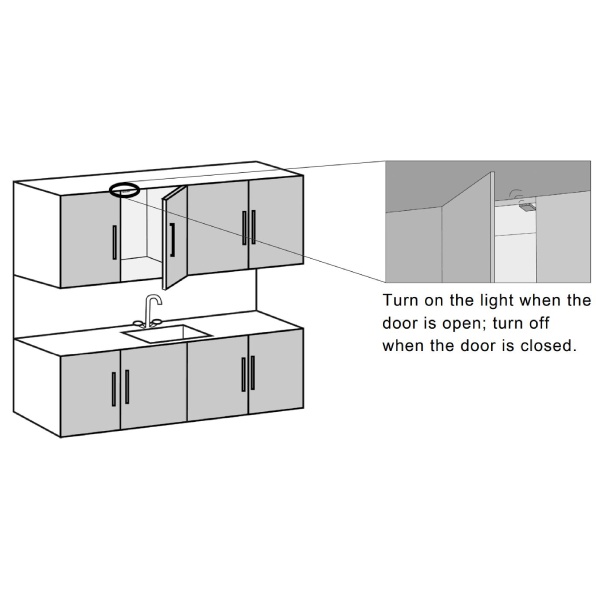

Operation: This sensor features the ability to switch the lighting on and off by sensing an object (door) in front of it. When the sensor is covered, the lights are off, and when the object is removed the lights turn on.

Double Door Sensor: If either sensor detect that a door is open, this will prompt the light to turn on. (Only 1 sensor needs to trigger to activate the lighting)
